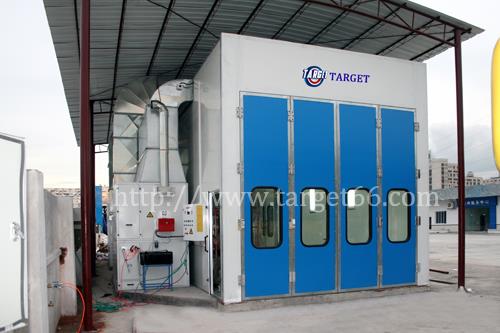

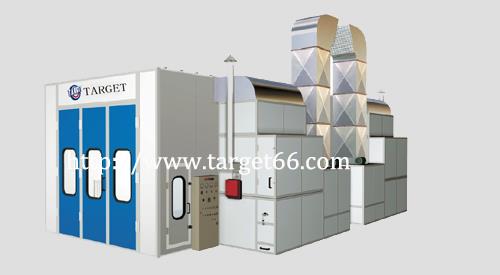

Spray Booth 12m Truck Diesel Burner TG-12-45

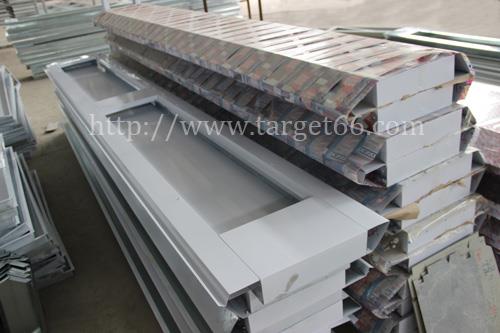

Thickness:70mm, width:1150mm, with Polystyrene(EPS) insulation inside, colour:white.
Folding door, 3 -folds, 3500×3900 mm(WxH), galvanized steel cover frame, with polystyrene(EPS) inside, colour:blue. Escape door :1 unit , 800×2000mm(WxH), colour: white.
Without basement. 2 rows of pits in the ground for exhaust air, dimension of each pit is 10350x760mm(LxW), with galvanized grilles made by twisted steel and flat bar above.
Intake air system
4x5.5KW double-intake centrifugal fans for intake air, model is YDW4.5S, Total air capacity is 65000M³/h.
Exhaust air system
2x7.5KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, Model TAE-560H, total air capacity is 50000 M³/h.
Equip pneumatic dampers actuate from spraying to baking cycle, manual dampers for exhaust air.
2units RIELLO RG5S diesel burners, stainless steel heat exchanger. Max. heating productivity：520000Kcal/h. Max. working temperature :80℃.
Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter.
Ceiling lights:16units x 4 pcs=64pcs x 36W,with electronic ballasts. Side lights: :18units x 4pcs=72pcs x 36W,with electronic ballasts.
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hour meter, temperature limit controller, pressure gauge, exhaust reduction voltage motor start.
