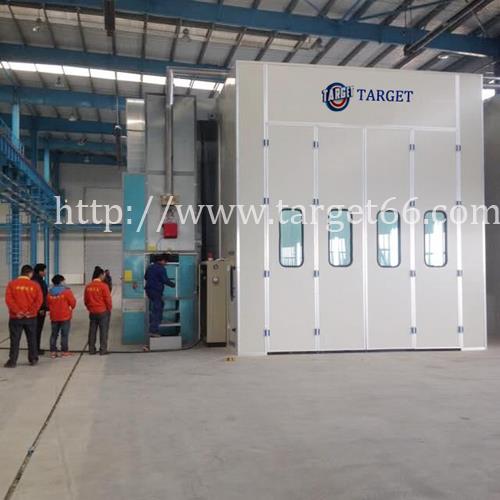

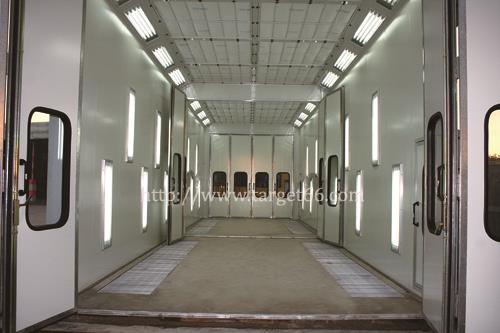

Spray Booth 15m Truck Diesel Burner TG-15-50
|
|
Inside dimension
|
15000x5000x5000mm(L×W×H)
|
|
Outside dimension
|
15144x6896x5600mm(L×W×H)
|
|

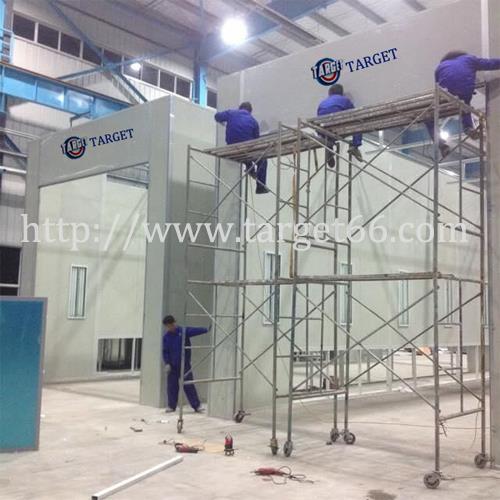

Wall panel
|
Profiled bar beams in the roof to strengthen the room body, wall panel thickness:70mm, width:1150mm, tongue and groove interlock structure,with Polystyrene(EPS) insulation inside, colour:white.
|
|
Doors
|
Folding door, 4 -folds, 4000×4500 mm(WxH), galvanized steel cover frame, with polystyrene(EPS) inside, colour:blue. Escape door :2 units , 800×2000mm(WxH)/pc, colour: white.
|
|
Basement
|
Without basement. 2 rows of pits in the ground for exhaust air, dimension of each pit is 12650x760mm(LxW), with galvanized grilles made by twisted steel and flat bar above.
|
|
Intake air system
|
4x7.5KW double-intake centrifugal fans for intake air, model is YDW4.5M, Total air capacity is 42000M³/h.
|
|
Exhaust air system
|
2x11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, Model TAE-710H, total air capacity is 36000 M³/h.
|
|
Damper actuates
|
Equip pneumatic dampers actuates from spraying to baking cycle, manual dampers for exhaust air.
|
|
Heating system
|
2units RIELLO RG5S diesel burners, stainless steel heat exchanger. Max. heating productivity：520000Kcal/h. Max. working temperature :80℃.
|
|
Filter system
|
Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter.
|
|
Filtering area
|
44M2
|
|

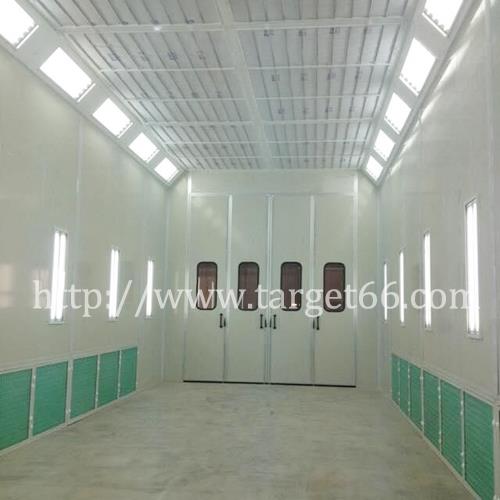

Lighting system
|
Ceiling lights:18units x 4 pcs=72pcs x 36W, Side lights: :22units x 4pcs=88pcs x 36W, up and down interleaving installation.with electronic ballasts.
|
|
Control system
|
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hour meter, temperature limit controller, pressure gauge, exhaust reduction voltage motor start.
|
|
Total power
|
63Kw
|
