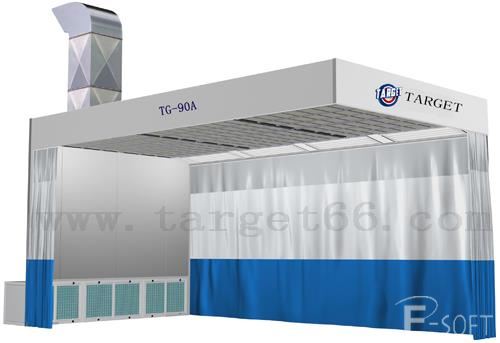

Prep Stations TG-90A
|
Inside dimension
|
6300×3450×2700mm(L×W×H)
|
Outside dimension
|
7550×3550×3100mm(L×W×H)
|
Plenum dimension
|
6300×3450×400mm(L×W×H)
|
Control system
|
Fan operation switch, lighting switch, emergency stop.
|
Room body
|
Rear side with 50mm EPS wall panel, Other
3sides with PVC curtains, curtain color: up is white, middle is transparent,
bottom is blue. Color option
|
Generator setting
|
Exhaust air from rear bottom, galvanized steel molding frame, white EPS
cover plates
|
Intake and exhaust air system
|
1x4KW double intake centrifugal fan, air capacity:
14000 m3/h, for exhaust air.
|
Filter system
|
Pre-filter, high efficiency filter,
exhaust fiberglass filter
|
Filtering area
|
15.9M2
|
Lighting system
|
Ceiling lights 8units×4pcs=32pcs 18W, LED lights
|
Setting style
|
Suspending steel hook from roof of building or steel column supporting.
|
Total power
|
4.5 KW
|
