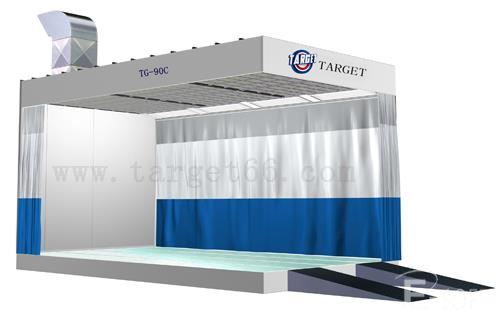

Prep Stations TG-90C
|
|
Inside dimension
|
6300×3450×2700mm（L×W×H）
|
|
Outside dimension
|
7550×3550×3400mm（L×W×H）
|
|
Plenum dimension
|
6300×3450×400mm（L×W×H）
|
|
Control system
|
Fan operation switch, lighting switch, emergency stop.
|
|
Basement
|
300mm galvanized steel basement, quadrate steel support, 5 rows of
grilles made by flat bar and twisted steel, then galvanized; 2 ramps, 520x2000mm(WxL)
|
|
Room body
|
Rear side with 50mm EPS wall panel, width:1150mm, color: white. Other
3sides with PVC curtains,
curtain color: up is white, middle is transparent, bottom is blue.
|
|
Generator setting
|
Exhaust air from rear side, galvanized steel molding frame, white EPS
cover plates.
|
|
Intake and exhaust air system
|
1x5.5KW double intake centrifugal fan, model YDW-4.5S, air capacity:
15500 m3/h, with electric damper for exhaust air.
|
|
Filter system
|
Pre-filter, high efficiency filter,
exhaust fiberglass filter, M shape dust collector.
|
|
Filtering area
|
14.8M2
|
|
Lighting system
|
Ceiling lights 8units×4pcs=32pcs 36W, with electronic ballasts.
|
|
Setting style
|
Suspending steel hook from roof of building or steel column supporting
|
|
Total power
|
6.7KW
|
