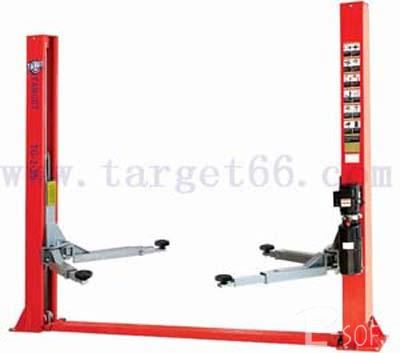

Two posts car lift TG-2-35

Specifications:

Floorplate 2 post lift     With double side Manual release
Model	Lifting Capacity	Post height	Total width	Max, lifting Height	Total weight
TG-2-35	3500Kg(8000 Ibs)	2812mm	3420mm	1900mm	570Kg
TG-2-40	4000Kg(9000 Ibs)	2812mm	3420mm	1900mm	590Kg

Manual release Floor plate 2 post lift

Lifting capacity: ----------------------4000Kg (9000lbs)

Post Height: ---------------------------2812mm

Car max lifting height: ---------------1900mm

Minimum height: ----------------------115mm

Clearance between posts: -----------2800mm

Total width: ------------------------------3419.6mm

Width of post material:------------------5mm

Long arm maximum length: ------------1070mm

Long arm minimum length:-------------- 730mm

Short arm maximum length: -------------1000mm

Short arm minimum length: --------------730mm

Lifting Time: ---------------------------------50s

Lowering Time: -----------------------------30s

Power Supply Voltage: --------------------220V/380V ,1ph/3ph

Gross weight:---------------------------------600kg
