Specifications:
Scissor alignment lift Double-deck lift ( For wheel Aligner )
Model
Lifting Capacity
Max, lifting Height
Total width
Total length
Total weight
TG-3500
3500Kg(8000 Ibs)
2200mm
2100mm
4000mm
1800Kg
TG-4000
4000Kg(9000 Ibs)
4500mm
2000Kg
TG-4500
4500Kg(10000 Ibs)
2160mm
4800mm
2050Kg

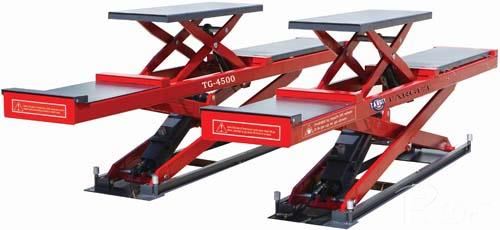

Scissor alignment lift
Double-Deck Lift (For Wheel Aligner)
With automatically Pneumatic lock
With rubber pads for protection
Position for rolling angle plate for alignment
Min lifting height:340mm
Lifting Capacity: ------------------------------------------4500Kg (about 10000lbs)
Main platform lifting height (sub-platform): --------1800mm(430mm)
Clearance between platform:------------------------- 900mm
Total width:----------------------------------------------- 2100mm
Single platform total width:-------------------------- 600mm
Platform length:--------------------------------------- 4800mm
Lifting Time: --------------------------------------------80s
Lowering Time:-------------------------------------adjustable
Power Supply Voltage: ---------------------------220V/380V, 1ph/3ph
Motor power: ----------------------------------------2.2Kw
Gross weight:----------------------------------------2100kg
