Technical Parameters:
Power supply:-------------------110V~220V
AC,50/60Hz
Toe: ------------------------------+20°~-20° (±1′).
Camber:--------------------------+10°~-10° (±2′).
Caster:----------------------------+20°~-20° (±3′).
KPI:------------------------------ +20°~-20° (±3′).
Set back:--------------------------+5°~-5° (±2′).
MAX Steering angle:-----------+60°~-60° (±0.1°)
Thrust angle:---------------------+5°~-5° (±2′).
Max.Axle base:------------------3200mm (±2mm)
Total weight:---------------------275KGS
|
Features:
Patents,high resolution Cameras,USB Interface,FPGA Technology,
Temperature Compensation, Intuitive , 3D dynamic simulation, Fast and Real-time
Measuring,Less demand to lift level,Durable
Target plates, Need not wheel Compensation, Audio prompt, Multilingual,high precision and quality, Easy operation and Maintenance.

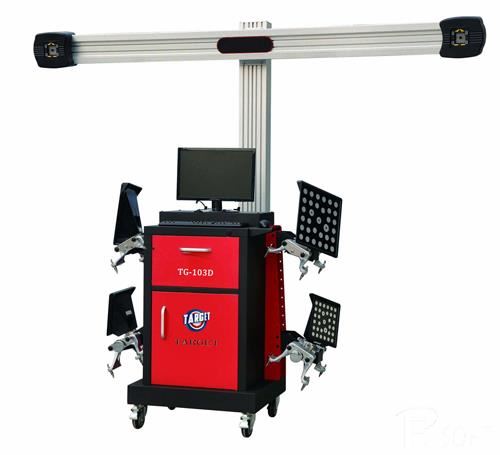

1. Combined with four
targets, double camera 3D system provides the most economic and accurate
four-wheel alignment.
2. Camera constantly
takes pictures from 4 target plates and do precise calculation, the measurement
data can be shown immediately.
3. Camera calibration
has been done before leaving factory.
4. The camera is fixed
on the beam and no need to adjust.
5. The target does not
have electronic devices, wire and battery, no need to calibrate.
The Equipments
Configuration:
Power:
----------------------------------------------500 W,110V~220V AC,50/60Hz.
Aluminum Beam with 2 Camera Computer:-----------------------------------------
Brand PC , Software requirement:Win 7,32-bit system.
Internal
Memory Capacity:---------------------2 GB DDR3 1333
Hard
disk:-------------------------------------------500G,SATA
CPU speed:----------------------------------------G2020,
2.9GHZ
Monitor:--------------------------------------------21".
Printer:----------------------------------------------A4
printer.
Target:-----------------------------------------------4PCS (2 big and 2 small)
Clamp,
Spec.:---------------------------------------12"-22"(24" option),4PCS
Brake Pedal
Depressor Steering wheel holder
Turntables:-----------------------------------------2PCS
2PCS
Wedge Block Luxury cabinet 1PC Color : Blue ,red optional
Update:----------------------------------------------online
freely
