Technical data:
|
Power supply:-------------------110V~220V
AC,50/60Hz
Toe:--------------------------------+20°~-20° (±1′).
Camber:---------------------------+10°~-10° (±2′).
Caster:-----------------------------+20°~-20° (±3′).
KPI:------------------------------- +20°~-20° (±3′).
Set back:---------------------------+5°~-5° (±2′).
MAX Steering angle:----------+60°~-60° (±0.1°).
Thrust angle:----------------------+5°~-5° (±2′).
Total weight:----------------------339KGS
|
Features:
With Intellectual Property Right on software, 2 high resolution
Cameras, USB Interface, FPGA Technology, Temperature Compensation, Intuitive ,
3D dynamic simulation, Real-time Measuring, Less demand to lift
level，Durable Target plates, high
precision and quality, Need not Wheel Compensation.

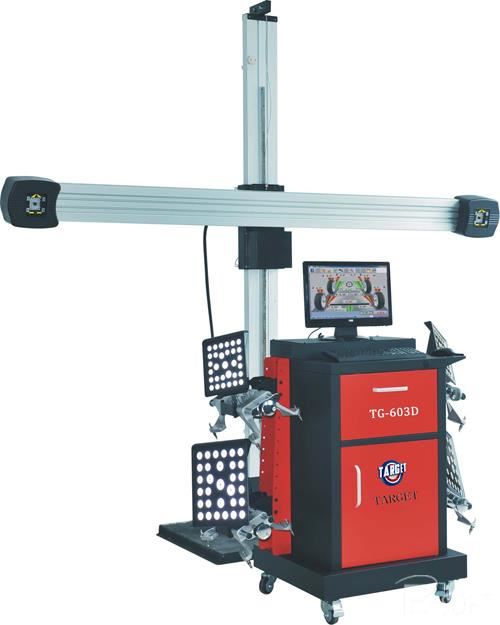

1. Combined with four targets, double camera 3D system provides
the most economic and accurate four-wheel alignment.
2. Camera constantly take pictures from the four target plates and
do precise calculation, the measurement data immediately shown.
3. Camera calibration has been done in the factory.
4. The camera is fixed on the beam and no need to adjust.
5. The target does not have electronic devices, wire and battery,
no need to calibrate
The equipment configuration:
Power:------------------------------------------800 W,110V~220V
AC,50/60Hz 2 Camera beams and Moveable
cabinet
Computer:--------------------------------------Brand PC, Software requirement:Win 7,32-bit operating
system.
Internal Memory Capacity:-----------------1G
Hard disk:--------------------------------------250GB.
CPU speed:-------------------------------------2.9GHz
Monitor:----------------------------------------19".
Printer:-----------------------------------------A4 printer.
Target:------------------------------------------4 (2 big and 2 small)
Clamp:------------------------------------------12"-22"(24"
option)
Brake Fixer Lock for
Steering wheel
Turntables:----------------------------------2PCS 2PCS Wedge Block Luxury
cabinet 1PC
