Model:--------------------------------------------------

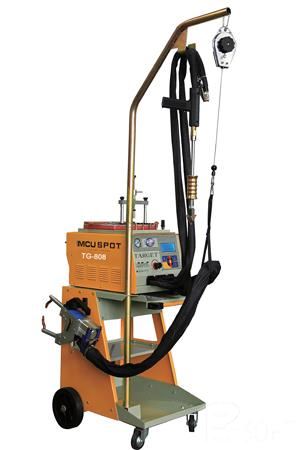

TG-808
Input
voltage:------------------------------------------- 2PH/380V, 50/60Hz
Input
current (A):--------------------------------------- 32
Input
power (KVA):------------------------------------- 25
Max.
output current (A):------------------------------- 9800
Air
supply pressure (bar):----------------------------- 5~8
Clamping
pressure (daN):---------------------------- 117
Double
side welding thickness (mm):-------------- 2.5+2.5
Single
side welding thickness (mm):--------------- 0.6+0.8/0.8+1.0/1.0+1.2
No
load voltage (V):----------------------------------- 12.1
Protection
degree:------------------------------------- Ip21
Cable
dia. / length:------------------------------------ 95/120m㎡ /2.5m
Cable
material:---------------------------------------- 100%Cu
Max.
welding nugget (mm):------------------------- 7
Output
voltage (V):----------------------------------- Welding materials melting
AC4.5-8 V
Carbon rod heating AC3.5-5.5 V
Spot
and butt welding AC12-14V
Timer
regulation range (S):-------------------------- 0.1-2.0 S
Current
and voltage regulation:-------------------- Digital stepless regulation (99
steps)
Size
(mm):---------------------------------------------- 620×580×1250
Weight
(Kg):-------------------------------------------- 110
