Technology and innovativeness
★ Constant
voltage constant current, impulse current charging.
★ Stepless
adjustment, Intelligent timing charging.
★ Remote
Control, impulse current boosting.
★ High and
low voltage isolation protection, operational safety.
★ Have the
functions of Battery to sulfide repair.
★ Automatic
monitoring the high pressure status when the cars were excessive starting.
★ Low
Energy, fast and efficient, green.
Eight kinds of car boosting and charging
basic functions
1. Boosting
and charging two modes, 12V or 24V.
2. Three
kinds of working mode: charging, quick boosting, boosting..
3. Charge
current can be adjusted accurately; can be satisfied with the max 200AH
battery.
4. Current
stabilization, do not produce the instantaneous electric current or voltage.
5. The power’s
positive and negative reverse connect to protect the device.
6. Won’t
damage the car internal electronic components.
7. Can
charging several batteries at the same time.
8. Automatic
charging, no custody.
|

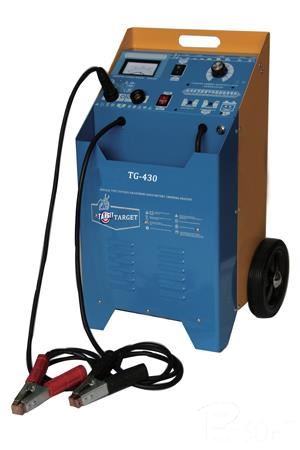

Model
|
TG-430
|
|
Input power（50/60Hz）
|
220V±5%
|
|
Max Input Current（A）
|
16A
|
|
Rated Power（KW）
|
1.5 KW
|
|
Rated Dc Pulses Charge Current
Range（A）
|
0.45A – 30A（Stepless）
|
|
Max Dc Charging Current Pulse（A）
|
90A
|
|
Rated Dc Pulses Boosting
Current Range（A）
|
1V/250A – 0V/430A
|
|
Intelligent Default Charging
Time（H）
|
3H（End
of Charge, Auto Stop）
|
|
Boosting Time Range（S）
|
5S~20S（End
of Boosting, Auto Stop）
|
|
Charging Function
|
Floating
Charge、trickle charge、Quick
charge
|
|
Boosting Function
|
Assist
Boosting、Quick Boosting
|
|
Standard Battery Capacity（Ah）
|
12Ah – 150Ah
|
|
Battery Rated Voltage（V）
|
12V/24V
|
|
Standard Charging Terminal
Voltage
|
（Temperature Control）
|
|
12V , 24V
|
14.0V – 14.4V , 28.0V – 28.8V
|
|
Function Temperature Range
|
0℃ - 40℃
|
|
Charging wire length/Diameter
|
2m/10mm2
|
|
Standard charging
characteristic curve
|
I1U1I2aI3aI3…
|
|
Experts charging characteristic
curve
|
IU1oU2
|
|
Protection（DIN 40050）
|
IP 20D
|
|
Protection（DIN 40530）
|
I
|
|
Weight / Size
|
28kg , 450×340×630mm
|
