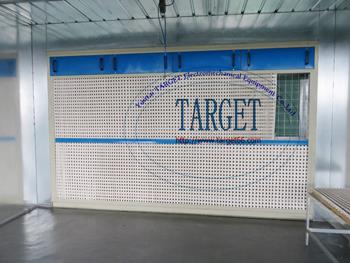

Furtinure Spray-Baking booth TG-100A ( Optional : Dry style--Dry filter paper)
|
|
Outside
Dimension (L×W×H)
|
12000×5000×3000mm
|
|
Painting
Room Dimension (L×W)
|
3900×4900mm
|
|
Drying
Room Dimension (L×W)
|
8000×4900mm
|
|
Incoming
Door Dimension (W×H)
|
1900mm×2000mm
|
|
Delivery Door
Dimension (W×H)
|
1900mm×2000mm
|
|
Air Capacity
|
16000 M³/h
|
|
Air
Speed
|
0.35-0.45 m/s
|
|
Ventilation
Rate
|
245 Times/Hour
|
|
Wall
Panels
|
EPS colorful steel skin board, wall panel:50mm
thick, 0.4 mm steel, tongue & groove style
compound construction, Aluminum-alloy frame, anti-flame and heat-insulation.
|
|
Grilles
|
40mm*3mm
flat iron，10#channel
steel
|
|
Lighting
|
spray
booth:18units×36w
baking
booth:8units×36w Illuminance
exceeding 450LUX, non explosive
|
|
Infrared
Heating Tubes
|
18pieces×1kw
carbon fiber far-infrared heating tubes, non explosive
|
|
Generator
Setting Type
|
Side upper intake air, quadrate steel frame, coated steel.
|
|
Intake
Air Fan
|
2×3KW double-intake
centrifugal fans, air capacity:16000m³/h
|
|
Water
Curtains
|
dimention:3000×400×1500mm(L×W×H),stainless
steel.
|
|
Water
Pump
|
brand:Lailibao, capacity:7m³/h,
lift:18m, rotate speed:2860rotate/m
power:750W 380V/50HZ
|
|
Filter
System
|
pre-filter,
high efficiency filter(ceiling filter)
|
|
Total
Power(KW)
|
25
|
