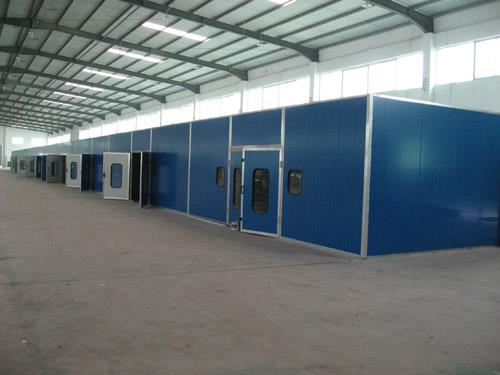

Spray-Baking booth TG-100C
|
Outside
Dimension (L×W×H)
|
24000×5000×3000mm
|
Painting
Room Dimension (L×W)
|
4900×4900mm
|
Drying
Room Dimension (L×W)
|
18900×4900mm
|
Incoming
Door Dimension (W×H)
|
1900×2000mm
|
Delivery Door
Dimension (W×H)
|
1900×2000mm
|
Air Capacity
|
20000 M³/h
|
Air
Speed
|
0.25-0.3 m/s
|
Ventilation
Rate
|
255 Times/Hour
|
Wall
Panels
|
50mm thick EPS heat preservation wall panels
|
Grilles
|
40mm*3mm
flat iron,10#channel
steel
|
Lighting
|
spray
booth:18units×36w
baking
booth:16units×36w Illuminance exceeding 450LUX, non
explosive,
|
Infrared
Heating Tubes
|
36units×1kw
carbon fiber far-infrared heating tubes, non explosive
|
Generator
Setting Type
|
Upper intake air
|
Intake
Air Fan
|
2×4KW
double-intake centrifugal fans, air capacity:20000m³/h
|
Water
Curtains
|
dimention:3000×400×1500mm(L×W×H),stainless
steel.
|
Water
Pump
|
brand:Lailibao, capacity:7m³/h,
lift:18m, rotate speed:2860rotate/m
power:750W 380V/50HZ
|
Filter
System
|
pre-filter,
high efficiency filter(ceiling filter)
|
Total
Power(KW)
|
45Kw
|
