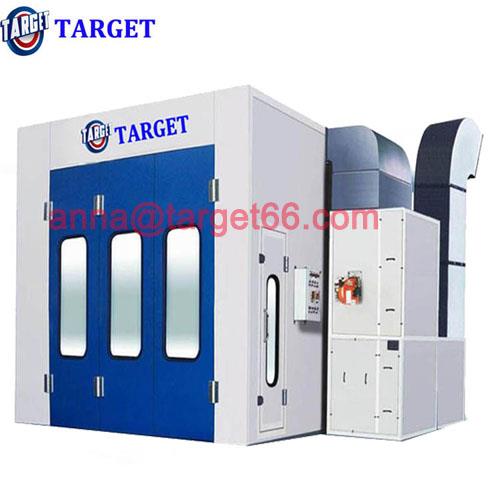

Spray Booth Diesel Burner TG-60D
|
Inside dimension
|
6900*3900*2650 (LxWxH)
|
Front door(mm)
|
3000*2600 mm(W×H)
|
Outside dimension
|
7000*5300*3050 (LxWxH)
|
Total Power(Kw)
|
12 Kw , Noise < 80db
|
Cabin System
|
Wallboard
|
EPS/Rockwool option ,50 / 75mm thick, compound construction, anti-flame and heat-insulation, galvanized steel roof panel.
|
Basement
|
No. directly install on ground, one side wall for air outlet
|
Air Circulation System
|
Intake Fan
|
Blower Capacity: 22000m³/h
|
Exhaust Fan
|
Blower Capacity: 15000m³/h
|
Power: 3kw/pc
|
Power: 4kw/pc
|
Quantity: 2 pcs
|
Quantity: 1 pcs
|
Model: Double-intake centrifugal fan
|
Model: Double-intake centrifugal fan
|
Air Volume: 22000m³/h,Air flow speed in the cabin:0.3m/s
|
Heating system
|
Burner
|
Italy Riello G20 Diesel Burner, 200,000Kcal/h.SUS304Stainless steel heat exchanger ,argon arc welding. Electric dampe between paint and bake work.
|
Heat energy
|
Max Temp:80.C,Heating Time: 10-15min(20-40°C), Fuel Consumption: 4-5kg/vehicle
|
Filter system
|
Dual-filtering structure
|
Primary filter :Can Capture Granules Larger than 10μm
|
Ceiling filter :600g high efficiency filter,can Capture Granules Bigger than 4μm
|
Floor filter: fiberglass filter,exhaust activated carbon filter, Filtering rate>98%
|

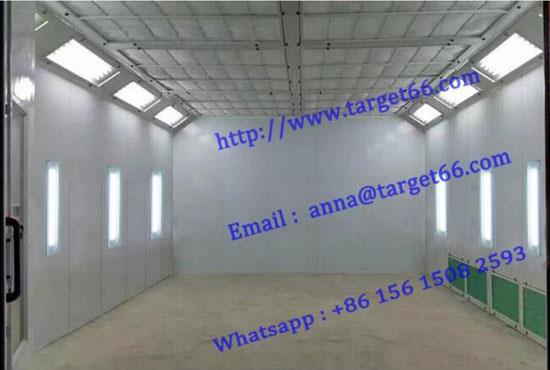

Lighting system
|
Ceiling lights
|
8Units×4Pcs=32Pcs×18W LED
|
Side lights
|
6Units×2Pcs=12Pcs×18W LED
|
Control system
|
Spraying, heat spraying, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop. All motors are full voltage start.
|
Environmental System
|
Multi-Layer Fiberglasses Filter, active-carbon, and ensure a qualified exhaust according to the relevant state standards
|
