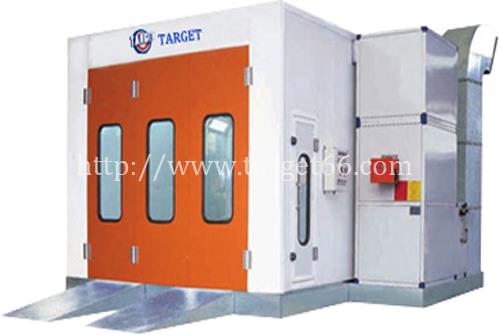

Spray Booth Diesel Burner with waterborne paint system TG-70D
23 Kw , Noise < 80db
Rock wool colorful steel skin board,75mm thick,steel 0.5mm thick, compound construction, anti-flame and heat-insulation, galvanized steel roof panel.
350mm depth,Galvanized steel sheet and square steel pipe assembling,2 rows of grid plates made by flat bar and round steel,3 rows of diamond plates, galvanized.2 ramps, external setting, 750 x 2000 mm ( W * L )/pc
Air Circulation System
Blower Capacity: 25000m³/h
Quantity: 1 pc
Model: turbo fan
Air Volume: 25000m³/h，Air flow speed in the cabin:0.25m/s

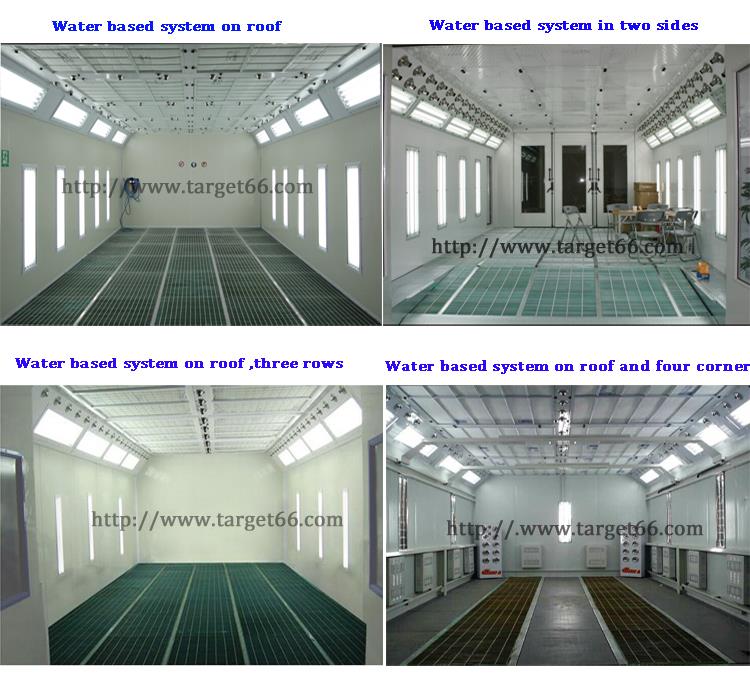

Waterborne paint system
Cabin Ceiling / Cabin side
Italy Riello RG5S Diesel Burner, 260,000Kcal/h.SUS304Stainless steel heat exchanger ,argon arc welding.
Max Temp:80.C,Heating Time: 4-5min(20-60°C), Fuel Consumption: 4-5kg/vehicle
Primary filter :Can Capture Granules Larger than 10μm
Ceiling filter :600g high efficiency filter,can Capture Granules Bigger than 4μm
Floor filter: fiberglass filter,exhaust activated carbon filter,Filtering rate>95% ,TSP≤1.4mg/m3
8Units×4Pcs=32Pcs×36W 900LUX,with anti-explosion design .
6Units×4Pcs=24Pcs×30W 900LUX,with anti-explosion design .
Spraying, heat spraying, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop. All motors are full voltage start.
Multi-Layer Fiberglasses Filter, active-carbon, and ensure a qualified exhaust according to the relevant state standards
