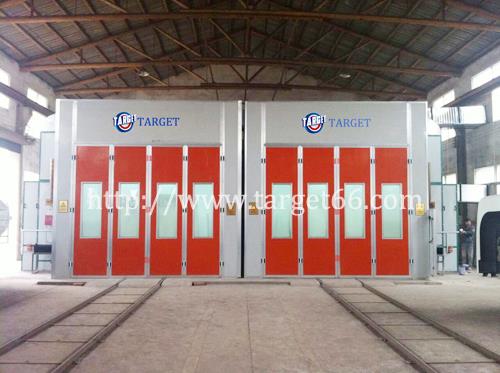

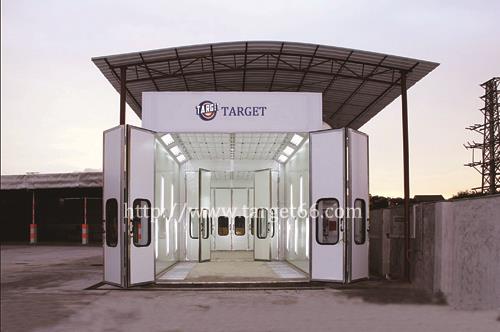

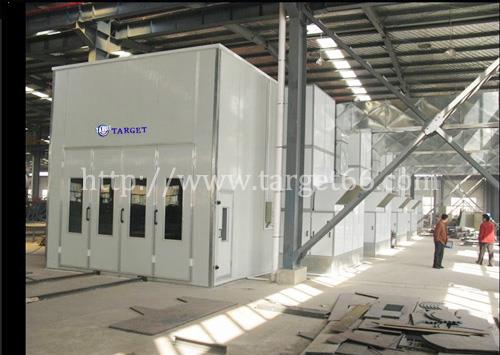

Spray Booth Truck Diesel Burner TG-18-50
|
Inside dimension
|
18000×5000×5000mm(L×W×H)
|
Outside dimension
|
18144×6896×5600mm(L×W×H)
|
Wall panel
|

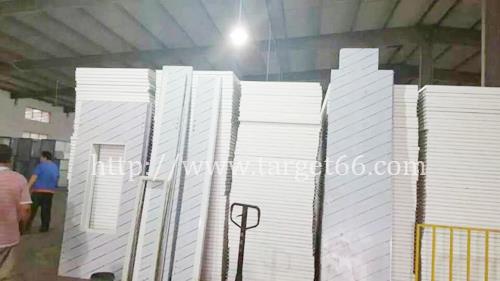

Profiled bar beams in the roof to strengthen the room body; wall panel thickness:70mm, width:1150mm, tongue and groove structure, with . EPS insulation inside, colour: white.
|

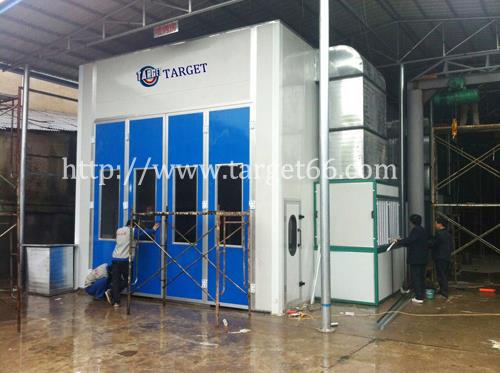

Doors
|
Main door: Folding door, 4 folds, 4000×4500mm(W×H), with galvanized steel frame, with polystyrene(EPS) inside, color: blue Escape door : 2 units, 800x2000mm(W×H) /pc, colour: white.
|
Basement
|
Without basement, 2 rows of pits in the ground for exhaust air, dimension of each pit is 16100×760mm(L×W), with galvanized grilles made by twisted steel and flat bar above.
|
Intake air system
|
6×5.5KW double-intake centrifugal fans for intake air, model YDW4.5S, total air capacity: 93000m3/h
|
Exhaust air system
|
3×11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, model TAE-630H, Total air capacity: 84000m3/h.
|
Damper actuates
|
Pneumatic damper actuates from spraying to baking cycle, manual dampers for exhaust air
|

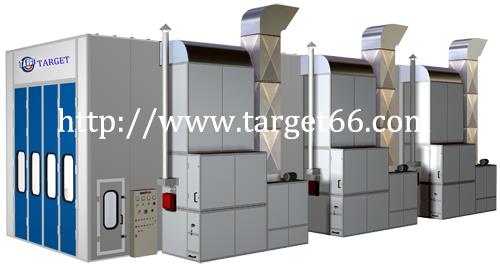

Heating system
|
3 units RIELLO RG5S diesel burners, stainless steel heat exchanger, Max. heating productivity: 780000 Kcal/h, Max.work temperature: 80℃
|
Filter system
|
Pre-filter, ceiling filter, exhaust fibreglass filter, activated carbon filter.
|
Filtering area
|
75M2
|
Lighting system
|
Ceiling Lights: 24Units×4Pcs=96Pcs×36W, Side Lights: 28Units×4Pcs=112Pcs×36W,
with electronic ballasts, up and down interleaving installation.
|
Control system
|
Spraying, heat spraying, baking, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop,ampere meter, voltmeter, hours meter, temperature limit controller, pressure gauge. Exhaust reduction voltage motor start
|
Total power
|
75.5KW
|
