Electic
Model : TG-TC4 (
Optional : Electic , LPG ,
Diesel )
|
Inner size
|
2200*1800*1800mm
( L*W*H)
|
Outter size
|
2500*2100*2100mm
( L*W*H)
|
Total power
|
33 Kw
|
Door type
|
One sided ( Optional : two sided )
|
Panel
|
Outer wall : Galvanized
steel, Electrostatic spraying

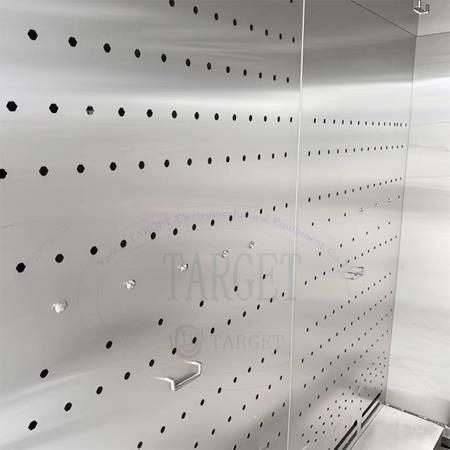

Inner wall : SUS#304 stainless steel
The middle with
150mm thickness rock wool board insulation layer
|
Heating
system
|
Stainless steel
electric heating pipe .
30 Units*1kw=30Kw , Max. 250 ℃ ,
Heating time : 20-30 min (150-250℃)
Voltage :,380V/415V
, 50/60HZ
|
Tempe. control accuracy
|
±1°C
|
Temp.-range
|
Rm. Temp~250℃
|
Temp. uniformity
|
±2°C
|
Circulation system
|
1 set ,3Kw
high-temperature fan
1 set Vaporization furnace
|
Control system
|
Temperature alarm;Thesensorsystem,Stop button;Process setting system:
temperature stop automatically .
|
Accessories
|
Complete
seal device, door ,lock .etc.
|
