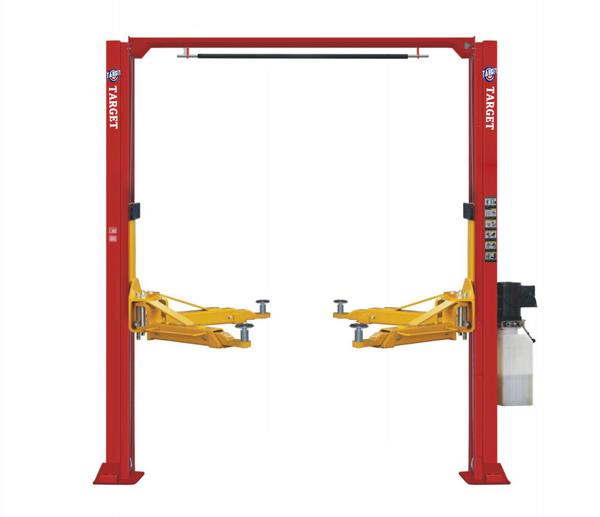

Two post car lift TG-2C-40B

Double sides manual release Clear floor 2 post lift

Lifting capacity: ------------------------ 4000Kg (9000lbs)

4500kgs/5000kgs/5500kgs/6000kgs/6500kgs/7000kgs/7500kgs/8000kgs ( optional )

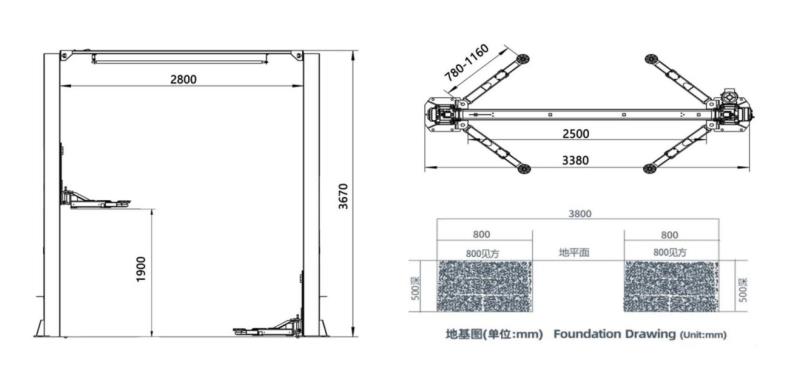

Lifting height: ---------------------------- 1900mm

Mini. height: ------------------------------ 110mm

Pass width: ------------------------------- 2540mm

Clearance between posts: --------- 2800mm

Total width: ---------------------------- 3380mm

Lifting Time:---------------------------- 50s

Lowering Time:------------------------ 30s

Long arm maximum length: ------- 1160mm

Long arm minimum length: -------- 780mm

Rated oil pressure:------------------- 24Mpa

Motor power:--------------------------- 2.2kw  380V/220V

Weight :---------------------------------- 625kgs
