Inside dimension
|
6900*3900*2800mm(LxWxH)
|

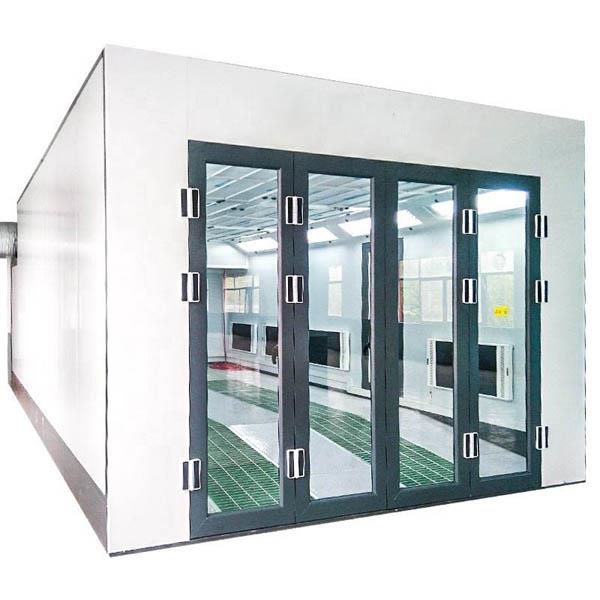

Main door
|
3200×2600 mm(W×H)4 Folding doors, with safety glass windows,
|
|
Outside dimension
|
7050*5300*3500mm(LxWxH)
|
Operater’s door
|
700×2000mm(W×H), 1 unit, with safety glass windows,aluminum alloy frame.
|
|
Wall board
|
EPS colorful steel skin panel ,75mm thickness, Steel sheeet thickness 0.4mm ,
Ceiling panel with galvanized steel sheet
|
|
Basement
|

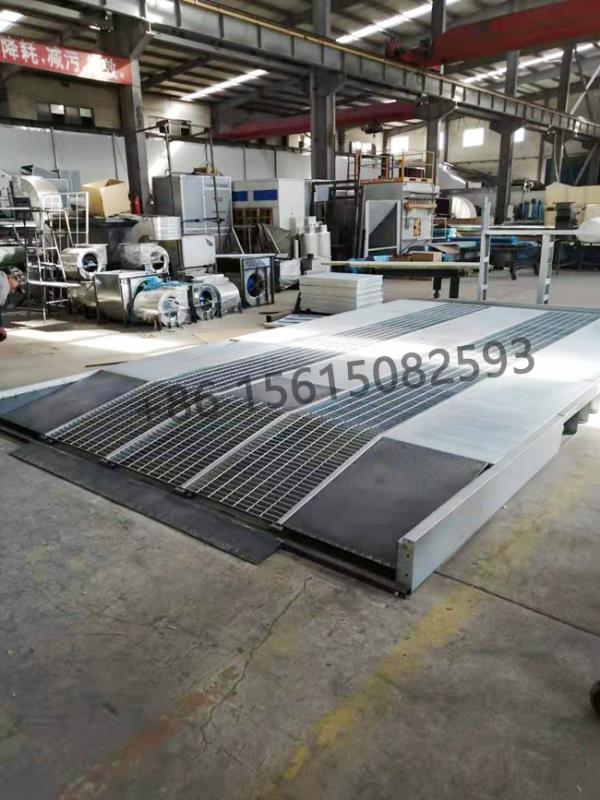

Full metal foundation, 300mm height, Galvanized steel sheet and square steel pipe assembling,
2 Rows of grid plates made by flat bar and round steel,
3 Rows of diamond plates, galvanized. Inside ramps
|
|
Ventilation System
|
2sets 3kw Centrifugal motor fan for air inlet ,Air Volume: 22000m³/h
1 set 5.5kw Centrifugal motor fan for air outlet ,Air Volume: 16000m³/h
Air flow speed in the cabin:0.35m/s
One set of Cabinet for the fans
Four Pcs air ducts (3.6m ) and one elbows
|
|
Heating system
|
10 units endothermic panels for heating, Total power:20KW, Max. Temperature 80℃.
|
|
Filter system
|
Primary filter :G3 grade
Ceiling filter :600G filter EU5 / F5, high efficiency filter Floor filter: Fiber Glass and Carbon Filter
|
|
Lighting system
|
Ceiling lights: 8Units×4Pcs=32Pcs×24W LED light 1200LUX
Side lights : 6Units×4Pcs=24Pcs×18W LED light 1200LUX
|
Control system
|
One set : (Spraying,time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop. All motors are full voltage start.)
|
|
Total Power
|
Painting: 12 Kw
Baking : 20 Kw
|
|
