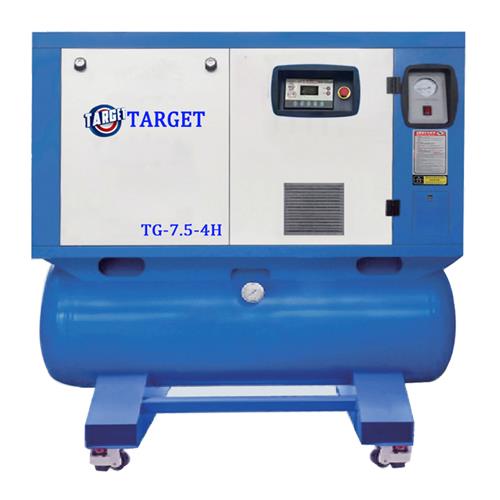

Combined Type Screw Air Compressor TG-7.5-4H

Specifications :

Combined Type Screw Air Compressor TG-7.5-4H

Power: 10HP/7.5kw

Exhaust Volume : 1.1m³/min

Working Pressure : 0.8Mpa/8Kg

Noise:  62db(±2)

Compression method: Trace oil, first stage compression

Cooling method: Radiator air cooling method

Motor speed: N=3600r/min

Lube: 5L

Fuel consumption : ≤2PPM

Compressed air outlet temperature : 10-15℃ higher than ambient temperature

Start Mode: Variable frequency soft start and automatic speed regulation

Control system : Computer LEC touch screen

Gas tank capacity: 200L

High precision filter : 2Pcs

Voltage : 220V/380V/400V/415V , 3Phase, 50/60HZ

Size: 1160*600*1275mm

Weight :200kgs
