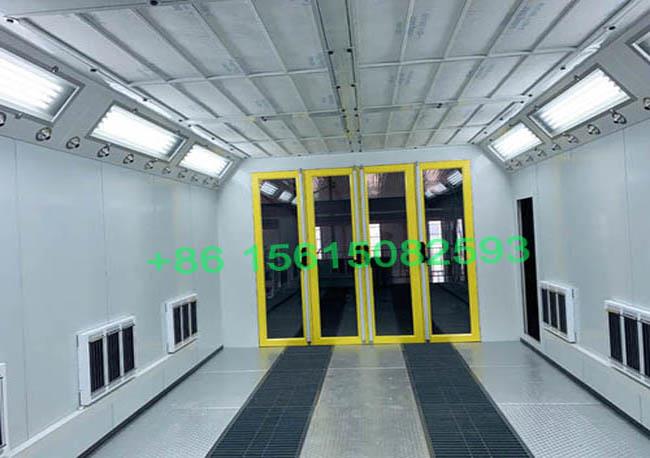

Spray Booth Diesel Burner TG-70A
|
|
Inside dimension
|
6900*4000*2800 (LxWxH)
|
Front door(mm)
|
3000*2700 mm(W×H)
|
|
Outside dimension
|
7000*5400*3430 (LxWxH)
|
Total Power(Kw)
|
13 Kw , Noise < 80db
|
|
Cabin System
|
Wallboard
|
EPS (epispastics polystyrene) colorful steel skin panel,EPS foam Density is 16kg/m³,50mm thick,steel 0.5mm thick, compound construction, anti-flame and heat-insulation, galvanized steel roof panel.
|
|
Basement
|
300mm depth,Galvanized steel sheet and square steel pipe assembling,2 rows of grid plates made by flat bar and round steel,3 rows of diamond plates, galvanized.2 ramps, external setting, 750 x 2000 mm ( W * L )/pc
|
|
Air Circulation System
|
Intake Fan
|
Blower Capacity: 20000m³/h
|
Exhaust Fan
|
Blower Capacity: 20000m³/h
|
|
Power: 5.5kw/pc
|
Power: 5.5kw/pc
|
|
Quantity: 1 pc
|
Quantity: 1 pc
|
|
Model: Turbo fan
|
Model: Turbo fan
|
|
Air Volume: 20000m³/h，Air flow speed in the cabin:0.35m/s
|
|
Heating system
|
Burner
|
Italy Riello G20 Diesel Burner, 200000Kcal/h.SUS304 Stainless steel heat exchanger ,argon arc welding.
|
|
Heat energy
|
Max Temp:80.C, Heating Time: 4-5min(20-60°C), Fuel Consumption: 4-5kg/vehicle
|
|
Filter system
|
Dual-filtering structure
|
Primary filter :Can Capture Granules Larger than 10μm
|
|
Ceiling filter :600g high efficiency filter,can Capture Granules Bigger than 4μm
|
|
Floor filter: fiberglass filter,exhaust activated carbon filter,Filtering rate>95%
|
|
Lighting system
|
Ceiling lights
|
8Units×4Pcs=32Pcs×36W 1000LUX,with anti-explosion design .
|
|
Side lights
|
6Units×4Pcs=24Pcs×30W 1000LUX,with anti-explosion design .
|
|
Control system
|
Spraying, heat spraying, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop. All motors are full voltage start.
|
|
Environmental System
|
Multi-Layer Fiberglasses Filter, active-carbon, and ensure a qualified exhaust according to the relevant state standards
|
