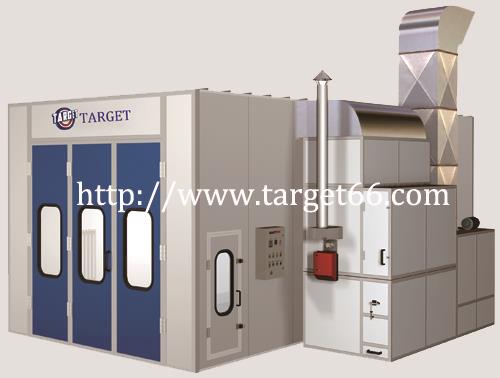

Spray Booth Mini Truck Diesel Burner TG-09-45
|
Inside dimension
|
9200x4500x3500mm(L×W×H)
|
Outside dimension
|
9344x6396x4100mm(L×W×H)
|
Wall panel
|

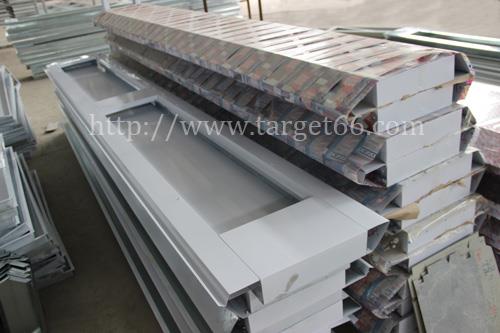

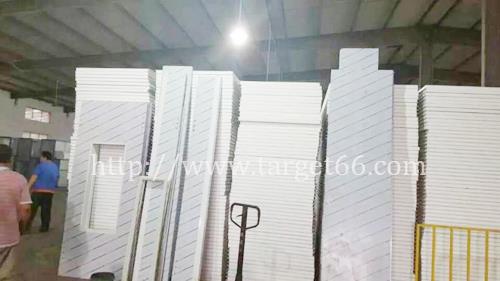

Thickness:70mm, width:1150mm, tongue and groove interlock structure, with Polystyrene(EPS) insulation inside, colour:white.
|
Doors
|

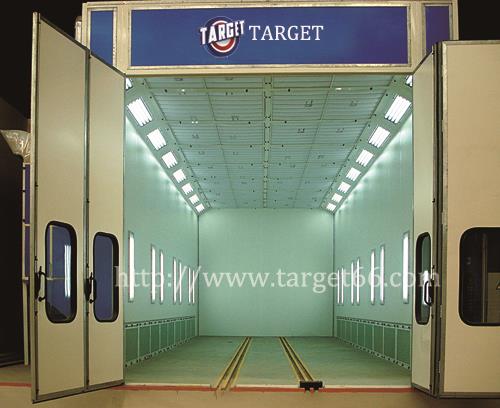

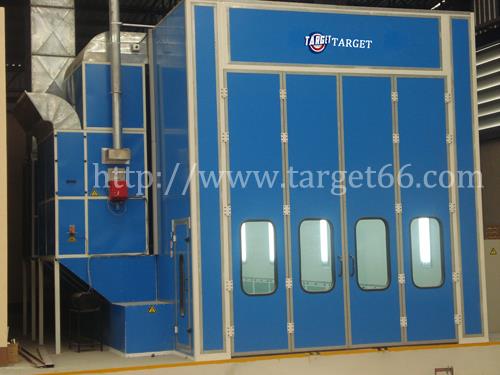

Folding door, 3 folds main door, 3500×3400 mm(WxH), galvanized steel cover frame, with polystyrene(EPS) insulation inside, colour:blue.
Escape door :1 unit , 800×2000mm(WxH), colour: white.
|
Basement
|

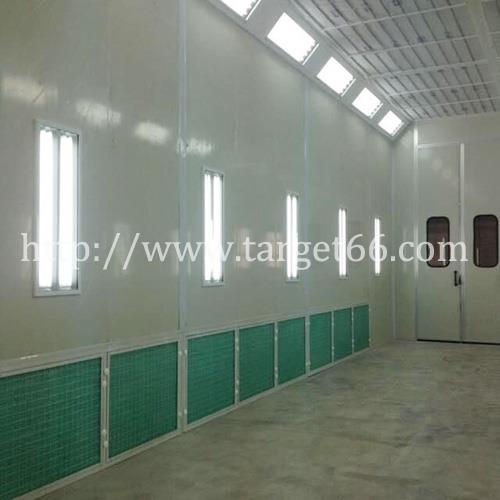

Without basement. 2 rows of pits in the ground for exhaust air, dimension of each pit is 6900x760mm(LxW), with galvanized grilles made by twisted steel and flat bar above.
|
Intake air system
|
2x7.5KW double-intake centrifugal fans for intake air, model is YDW4.5M,
Total air capacity is 42000M³/h.
|
Exhaust air system
|
1x11KW double-intake centrifugal fans for exhaust air, external motor, belt-drive,
Model TAE-710H, air capacity is 36000M³/h.
|
Damper actuates
|
Manual damper actuates from spraying to baking cycle, manual damper for exhaust air.
|
Heating system
|
RIELLO RG5S diesel burner, stainless steel heat exchanger. Max. heating productivity:260000Kcal/h. Max. working temperature :80℃.
|
Filter system
|
Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter.
|
Filtering area
|
31M2
|
Lighting system
|
Ceiling lights:12units x 4 pcs=48pcs x 36W,with electronic ballasts.
Side lights: :12units x 4pcs=48pcs x 36W,with electronic ballasts.
|
Control system
|
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hour meter, temperature limit controller, pressure gauge, exhaust reduction voltage motor start.
|
Total power
|
30.5Kw
|
